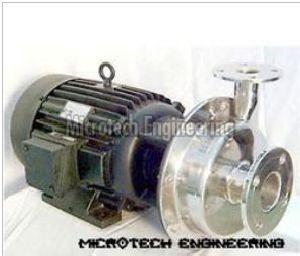

SS Chemical Pumps


Our comprehensive range of products is packed in sturdy, safe, and industrial grade materials that safeguard the contents inside from harm, dampness, dust, movement etc. Besides, the packing has printed product information. We are a prominent name offering quality-centralized array of products that are the perfect outcome of premium raw material and modern work methods. Also, we source the material from the reliable places only.


Standard features

  • Centrifugal single stage
  • Flange as per din standard
  • Back pull out design
  • Open / close impeller
  • Shaft sealing by single / doable mechanical seal
  • Sealed grease lubricated , deep grove ball bearing
  • The pump handle liquid having viscosities up to 1500 centrioles also with flame proof motor


Optional features

  • M.O.C
  • Casing - st. steel ( CF8 / CF8M )
  • shaft - st. steel ( SS 410 / SS 316 / SS 304 )
  • impeller - st. steel ( SS 410 / SS 316 / SS 304 )


Reliability : The pump are hydraulically designed for maximum efficiency. Every pump passes through stringent process & quality control plans and is designed to give longer life with consistent performance and trouble free service.

Applications

  • Due to content research & development data is subject to change
  • Natural Cellulose Fiber / Synthetic Fiber System
  • Hot & Cold Water Pumping.
  • Milk, Cream, Butter Milk Condensed Milk
  • Fruit juice, Beer, Wine, Sugar Syrup
  • Vitamin Solutions, Sugar & Confectionery.
  • Acids, Fine Chemicals
  • R O Water, DM water, Pure Water.
  • Water Treatment Plats
  • Colour dyes and Pigments / Paints
  • Descaling Applications, Paper & Cement Industries
  • Detergent, Soaps, Paste & Shampoo
  • Pharmaceutical Formulations, Syrup etc.
  • Alkaline Solutions / Alcoholic Drinks
  • Bottling Plants, Soft Drinks & Distillery
  • Food Processing / Liquid Food Stuffs
  • Textile Sizing, Dyeing & Finishing Systems
  • Vegetable Oil, Mineral Oil, Lub Oil etc.

Specifications

Type Chemical Pumps
Use Chemical Supply
Weight 100-150kg, 200-250kg, 250-300kg, 50-100kg
Color Brown, Grey, Light White, White, ANY COLORS
Voltage 110V, 220V, 380V, 440V
Condition New
Automatic Grade Manual, Semi Automatic
Power 1-3kw, 3-6kw, 6-9kw, 9-12kw
Warranty 1year
pump power 10Hp, 2Hp, 3Hp, 5Hp, 7Hp
Pump RPM 1400, 2800
Brand Name M/S MICROTECH ENGINEERING
Application Dairy industries,Food processing plant,Pharmaceutical industries,Sugar & confectionery
Fuel DIESEL
Usage Bottling plants,Beverages,Alkaline solution,Water treatment plants,Cement plants
Theory POSITIVE DISPLACEMENT PUMP
Pressure 1-3 KW 3-6 KW
Structure SS
Head 80 meter
Capacity 110 m3/h
Delivery size 12 to 150 mm
Temperature -10 to 95 degree Celsius
Test pressure 8 kg/cm2

Additional Information

Product Code ME-SCP
Min. Order Quantity 1 Piece(s)
Port ALL COUNTRY
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time READY STOCK
Packaging Details WOODEN BOX.
