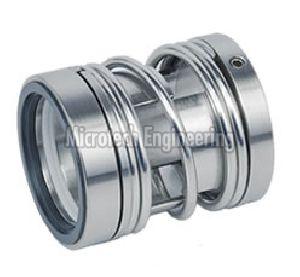

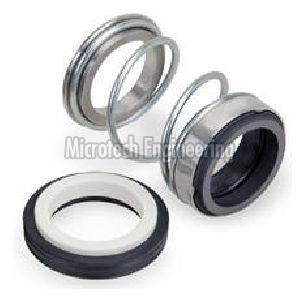

Balanced Single Coil Spring Seals


Series Meqe3oob Is Single Coil Spring Seal Developed For Light Contamination, Dirty Media And Clogging Type Application. These Type Also Allows It To Fit Onto A Normal Shaft Without Any Balancing Step. The Mechanical Drive Of This Seal Is Realized By Grub Screw Which Lock Onto The Shaft. The Seal Has A Limited Axial Length Compact Shape Which Allows Easy Mounting.

Seal Characteristics

  • Single Seal
  • Balanced
  • Helical Coil Spring
  • Independent On Direction Of Rotation


Applications

  • General Chemicals
  • Petrochemicals
  • Light Hydrocarbons

Specifications

Type Spring Seals
Material Stainless Steel
Shape Round
Application Aqueous Solutions Chemicals
Color Shiny-silver
Temperature Range 0-25 Degree C, 25-50 Degree C, 50-75 Degree C
Surface Finishing Coated
Speed 0-20m/s, 20-40m/s

Additional Information

Min. Order Quantity 1 Piece(s)
