Mobile : +91-7503973786, +91-9873945272

Phone : +91-11-25182577

Fax : +91-11-25182577

Email Address : m.microtech.engineering@gmail.com

Price : INR 1,000.00 / Piece(s)

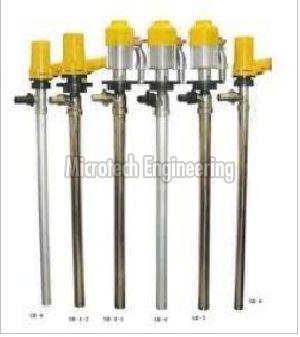

Barrel Empty Progressive Cavity Eccentric Screw Pumps /Barrel Decanting Pump, PPB Series. It is Universal Robust and Powerful High Viscosity Liquid Pump, Suitable For High Viscosity, Pasty & Low Viscosity Products From Casks And Narrow Containers.

Execution

Long life, Flexi shaft and closed or open Cardan Joints.
Quick to dismantle, convenient to clean
Barrel in AISI 304, AISI 316 & AISI 316L.
Rotor / Shaft & Rotating Parts in AISI 304, AISI 316 & AISI 316L
Torsion Free Moulded to Stainless Steel Tube Rubber Stator in Nitrile, Hyplon, FPM, NCR Food Grade Nitrile, EPDM in white & black colour elastomers.
Shaft Sealing by Stuffing Box Gland Packed / Mechanical Seal

Applications

Drinking Water schemes
Water Pressure Systems
Irrigation System
Industrial Use
Stock Watering

Specifications

Capacity Up to 7 m³/hr.
Pressure Stages Up to 8 Bar
Temperature Up to 150^o C / 302^o F
Viscosity Up to 25000 cP
Solid Handling Capability Up to 12%
Pump Barrel Diameter 42, 51, 60 mm.
Immersion Length 450, 700, 1000, 1200 mm.

Item Code : BEP

Specifications

Type	Pump
Material	Iron, Stainless Steel
Use	Oil Priming
Certification	Ce Certified
Color	Multi Colour
Automatic Grade	Manual
Driven Type	Pneumatic
Pressure	0-10bar
Warranty	1year

Additional Information

Min. Order Quantity

1 Piece(s)

Barrel Emptying Pump
Acids Barrel Emptying Pump
Alcohols Barrel Emptying Pump

Mineral Oils Barrel Emptying Pump

Submit Your Requirement
