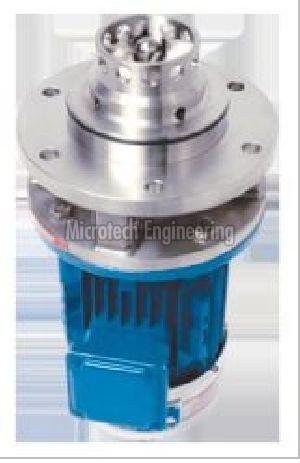

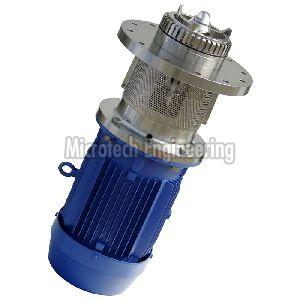

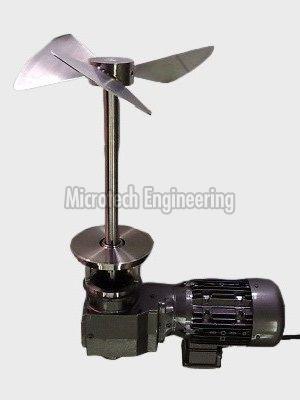

Bottom Entry Mixer

Microtech Engineering Bottom Entry Mixers Are Typically Used In Conjunction With A Stirrer/Scraper Unit. It Emulsifies, Homogenizes, Solubilizes, Suspends, Disperses And Disintegrates Solids. The Bottom Gives High Shear Homogenization While The Stirrer/ Scraper Distribute The Homogenized Output Uniformly Throughout The Vessel. This Is Ideal For High-Viscosity Cosmetic, Pharmaceutical And Food Products. They Can Also Be Used On Low Viscosity Products To Wet Our Powders. Clean-In-Place Design With A Simple, Easy To Clean Construction.

Aeration Free

• Self-Pumping
• No Bypassing
• Interchangeable Warheads
• Sanitary Construction
• Easy Maintenance
• Lower Power Requirements
• Reduces Particle Size
• Rapidly Dissolves Solids

Accelerates Reactions
Sealing : Single Mechanical Shaft Sealing: A Single Carbon/Ceramic Mechanical Shaft Seal With Viton Elastomers Is Standard. Other Face Materials And Elastomers Are Available As Optional Extras. Double Mechanical Shaft Sealing: These Are Required When Processing Products That Are Abrasive, Sticky Or Viscous Or When The System Is Under Vacuum. Sealant Flushing Systems Can Be Supplied As Optional Extras :

• Operating Pressures - All Standard Models Are Designed For Operation On Pressures Not In Excess Of 40 Psig (2.8 Bar). High-Pressure Units Are Available Upon Request.
• Materials Of Construction - All Wetted Parts Are In 304/316 304L/316L Stainless Steel. Special Materials On Request. Electropolished Finish Is Available As An Optional Extra.
• Cleaning - Clean-In-Place (Cip) Design. Simple, Easy To Clean Construction.
• Motor Specifications - Tefc, Washdown Duty And Explosion Proof Motors Are Available As Standard. Inverter Rated, Stainless Steel And Other Motors Are Available As Optional Extras.
• Mounting - Stainless Steel Flange Fitting Is Available As Standard. Clamp-On Fitting Is Optional For Smaller Machines.
• Operating Pressures - All Standard Models Are Designed For Operation On Pressures Not In Excess Of 40 Psig (2.8 Bar). High-Pressure Units Are Available Upon Request.
• Ultra Sanitary: Model Available With Features Including:
• Crevice-Free Construction
• Sanitary Metal Bellows Shaft Seal
• Electro-polished Finish
