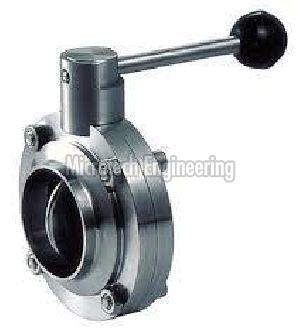

TC End Butterfly Valve


Our Butterfly valve body could be offered with Clamp end, Weld end, Male end, female end. The different handle of 4 position, 12 position and other style that you inquired or actuator for your widely used. INCH Butterfly valve body and disk are all made from full CNC machined, high polished that demanded with the high quality in the developed. It is necessary you specify at the time of order heat numbers and MTR"s are required. Material Test Reports (MTR"s) are available to document all heat number. EPDM, Silicon, Viton and PTFE seats are available, making our Butterfly valve suitable for many applications in such as food, dairy, beverage, meat processing, chemical, and many other industries.


Specifications

Body Made by forged material. Fully precision machined by CNC machine
Connection Clamp end and weld end Male end, female end are available from 1/2", 3/4" up to 4"
 Disk Made by forged material.  Fully precision machined by CNC machine
Material grade AISI-304, AISI-316
Size range From 1/2", 3/4" up to 4"
Seal (Gasket) EPDM, SILICON, VITON
Finish Mirror polish / electropolsh / mat finish
Brand MICROTECH ENGINEERING
