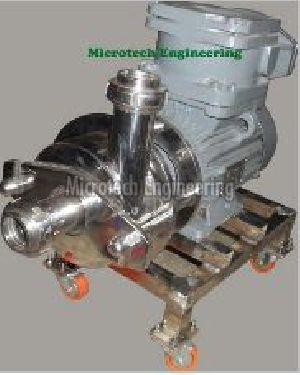

Cip Pumps
Contact Us
Mobile : +91-7503973786, +91-9873945272
Phone : +91-11-25182577
Fax : +91-11-25182577
Email Address : m.microtech.engineering@gmail.com
Price : INR 25,000.00 / Piece(s)
|
|
|
|
We have a good rapport with the leading names in the industry from whom we source the basic material, required for manufacturing superior grades products. As a respected name in the industry, we make use of only high-grade packaging material for the safe packing of the products. Thus, we ensure zero damage at buyer's end.
Standard Features
- Centrifugal single stage
- Flange as per din standard
- Back pull out design
- Open / close impeller
- Shaft sealing by single / doable mechanical seal
- Sealed grease lubricated , deep grove ball bearing
- The pump handle liquid having viscosities up to 1500 centrioles
- Also with flame proof motor
Optional Features
- Shaft sealing by gland packing
- Bearing lubricating by oil
- ANSI drilling on DIN flanges
- Trolley mounting arrangement
- Various type of connection
Reliability : The pump are hydraulically designed for maximum efficiency. Every pump passes through stringent process & quality control plans and is designed to give longer life with consistent performance and trouble free service.
Application
- Dairy industries
- Food processing plant
- Pharmaceutical industries
- Sugar & confectionery
- Bottling plants
- Distillery
- Beverages
- Water treatment plants
- Colors dies & pigments / paints
- Descaling application
- Sagar industries
- Hot & cold water pumping
- Sparkling filter press
Specifications
| Brand Name | M/S MICROTECH ENGINEERING |
| Application | Dairy industries,Food processing plant,Pharmaceutical industries,Sugar & confectionery |
| Power | 0.5HP TO 100 HP |
| Pressure | 1-3 KW 3-6 KW |
| Structure | SS |
| Head | 48 meter |
| Capacity | 40 m3/h |
| Delivery size | 12mm to 65 mm |
| Temperature | -10 to 95 degree |
| Celsiustest pressure | 10 kg/cm2 |
Additional Information
| Product Code | ME-CP |
| Min. Order Quantity | 1 Piece(s) |
| Port | ALL COUNTRY |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Delivery Time | READY STOCK |
| Packaging Details | WOODEN BOX. |
-
