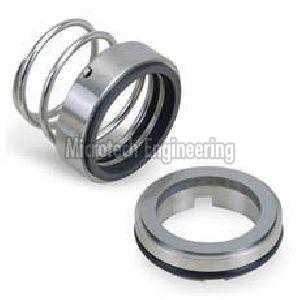

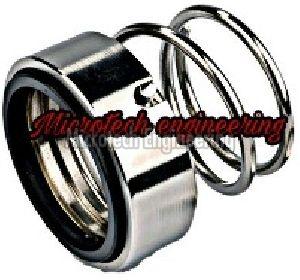

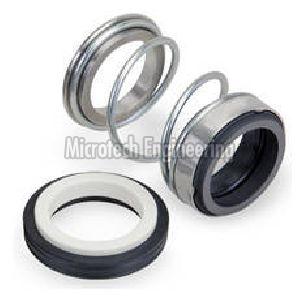

Conical Spring Seals


Series Meqe100 Is Single Conical Spring,  Seal With O-ring Provided For Secondary Sealing. Since The Torque Transmission Is Done By The Single Coil Spring The Seals Are Dependent On The Direction Of Rotation, Which Is Seen From The Drive End Of The Shaft Right Handed Spring And Left Handed Springs Are Provided For Clockwise And Anticlockwise Rotating Shafts Respectively. These Seals Can Carry A Variety Of Seals Faces, Serving Application In Submersible, Sewage, Chemical Transfer, Water Pumps Etc.

Seal Characteristics

  • Single Seal
  • Unbalanced
  • Conical Spring
  • Dependent On Direction Of Rotation


Applications

  • Water Pumps
  • Submersible Pump
  • Sewage Pump

Specifications

Size 0-3inch, 0-50mm, 100-150mm, 3-6inch, 50-100mm, 6-9inch
Type Conical Spring Seal, Spring Seals
Material Stainless Steel
Shape Round
Application Aqueous Solutions Chemicals, Corrosives
Grade SS 304, SS316
Color Grey, Grey-silver, Metallic, Shiny-silver, Silver, ANY COLORS
Place of Origin India
Temperature Range 0-25 Degree C, 25-50 Degree C, 50-75 Degree C, 75-100 Degree C
Surface Finishing Coated, Non Coated
Spring Type Double, Single
Speed 0-20m/s, 20-40m/s
Brand Name M/S MICROTECH ENGINEERING

Additional Information

Product Code ME-CSS
Min. Order Quantity 1 Set(s)
Port ALL COUNTRY
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time READY STOCK
Packaging Details WOODEN BOX.
